Drilling Machines and Drilling Systems

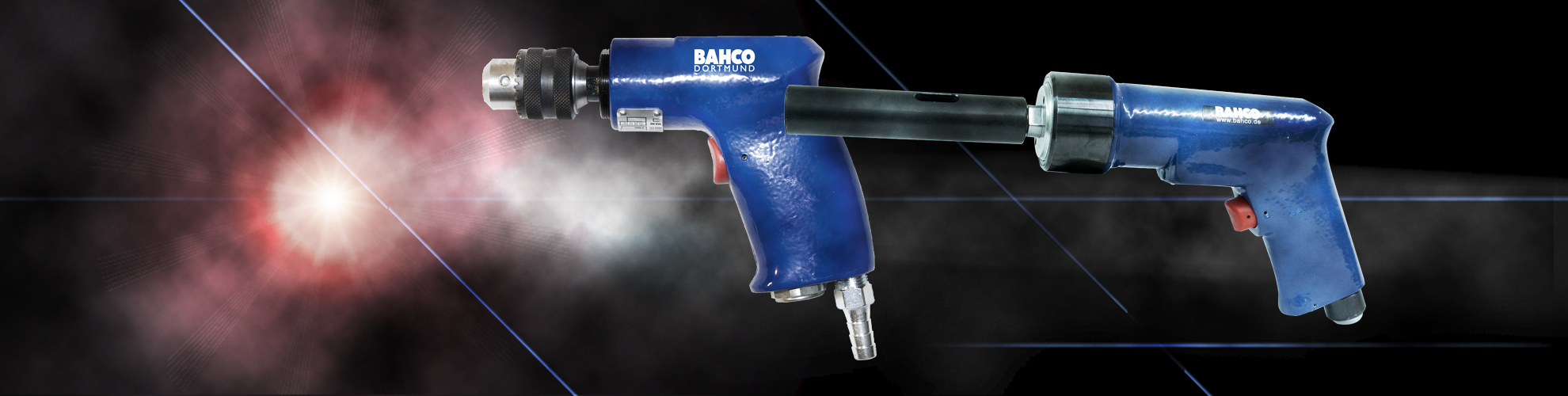

Drilling Machine Series B and BL
Drilling machines of the Series B and BL have an interior sound level, with less than 75 dB (A).
The ergonomic handle ensures effortless drilling to 21 mm and high feed force.
Version with pistol grip and return to rear
| Type | Drilling capacity | Torque | Idle speed | Type a. spindle size | Max. drilling | Spind. center dist. | Capacity | Total length | Weight | max. air comsumption |
| mm | Nm | rpm | thread | mm | mm | kW | mm | kg | m³/min. | |
| B6-30 | 6 | 3.0 | 3000 | ⅜" - 24 | 6.5 | 19.0 | 0.25 | 145 | 0.65 | 0.36 |
| B8-30 | 8 | 3.0 | 3000 | ⅜" - 24 | 8.0 | 19.0 | 0.25 | 155 | 0.70 | 0.36 |
| B8S-30 | 8 | 3.0 | 3000 | ⅜" - 24 | 8.0 | 19.0 | 0.25 | 170 | 0.75 | 0.36 |
| BL15-10 | 10 | 6.5 | 1500 | ⅜" - 24 | 10.0 | 21.5 | 0.37 | 180 | 1.05 | 0.60 |
| BL15-10S | 10 | 6.5 | 1500 | ⅜" - 24 | 10.0 | 21.5 | 0.37 | 200 | 1.20 | 0.60 |
| •BL7-13 | 13 | 15.5 | 650 | ½" - 20 | 13.0 | 23.0 | 0.50 | 270 | 1.80 | 0.72 |
| •BL7-13S | 13 | 15.5 | 650 | ½" - 20 | 13.0 | 23.0 | 0.50 | 310 | 2.10 | 0.72 |
| •BL3-16 | 16 | 20.0 | 320 | ½" - 20 | 16.0 | 23.0 | 0.50 | 280 | 2.10 | 0.72 |
| •BL3-16S | 16 | 20.0 | 320 | ½" - 20 | 16.0 | 23.0 | 0.50 | 300 | 2.40 | 0.72 |
| •BL3-MK2 | 21 | 20.0 | 320 | ½" - 20 | 21.0 | 23.0 | 0.50 | 320 | 1.80 | 0.72 |
Version with pistol grip and return to rear
| Type | Spindle center dist. | Capacity | Total length | Weight | Max. air consumption |
| mm | kW | mm | kgs | m³/min. | |
| B6-30 | 19.0 | 0.25 | 145 | 0.65 | 0.36 |
| B8-30 | 19.0 | 0.25 | 155 | 0.70 | 0.36 |
| B8S-30 | 19.0 | 0.25 | 170 | 0.75 | 0.36 |
| BL15-10 | 21.5 | 0.37 | 180 | 1.05 | 0.60 |
| BL15-10S | 21.5 | 0.37 | 200 | 1.20 | 0.60 |
| •BL7-13 | 23.0 | 0.50 | 270 | 1.80 | 0.72 |
| •BL7-13S | 23.0 | 0.50 | 310 | 2.10 | 0.72 |
| •BL3-16 | 23.0 | 0.50 | 280 | 2.10 | 0.72 |
| •BL3-16S | 23.0 | 0.50 | 300 | 2.40 | 0.72 |
| •BL3-MK2 | 23.0 | 0.50 | 320 | 1.80 | 0.72 |
Compressed air connection: ¼", Hose size B8-Series ¼" (6.35mm), all other types ⅜" (9.5 mm)
Types with "S": Supplied with kexless chuck / Types with "MK2": Supplied with morse taper 2, Types SR 206-1
All other types: Supplied with keyed drill chuck and drill chuck key | Models with ”•” have an extra handle
All information subject to change without further notice.
No responsibility is taken for the correctness of the named specifications.
Product data sheet
Spare Part List BL3
Spare Part List BL7-13-13S
Spare Part List BL8-10
Spare Part List BL15-10
