Wire Cutters

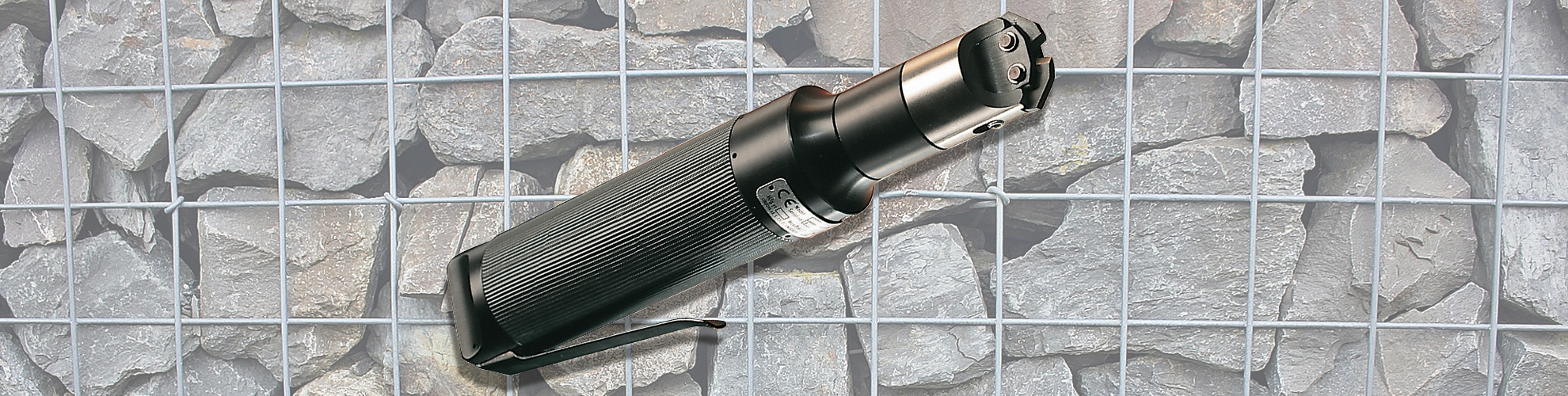

Wire Cutter Series TA3 (for steel wire up to Ø 3 mm)
The TA3 pneumo-hydraulic wire cutter cuts steel wire, stainless steel, aluminum, and copper up to 3 mm in diameter quickly and precisely. Its ergonomic design (0.9 kg) and quiet, vibration-free operation allow for continuous use in production and trade.
Technical Data
Pneumatic-Hydraulic Wire Cutter TA3: For Steel Wire up to Ø 3 mm
The air-hydraulic wire cutter TA3 is the professional solution for effortless and precise cutting of steel wire, stainless steel, aluminum, and copper up to a diameter of 3 mm. Thanks to its powerful combination of compressed air and hydraulics, this tool delivers fast and clean cuts. The ergonomic, perfectly balanced housing minimizes user fatigue during continuous operation, boosting efficiency in production, assembly, and industrial applications.
Key Features & Benefits
- Maximum Cutting Power: Reliably cuts steel wire and stainless steel up to Ø 3 mm with a fast, powerful stroke.
- Ergonomic & Lightweight: Weighs only 0.9 kg and is perfectly balanced for fatigue-free operation during long shifts.
- Air-Hydraulic Drive: Delivers exceptionally quiet, low-vibration, and low-maintenance operation.
- Versatile Cutting Blades: Three distinct blade configurations (A, B, C) allow optimal performance across various materials (steel, stainless steel, aluminum, copper).
- Compact Dimensions: Measuring 220 mm in length with a cylinder diameter of 52 mm, it offers easy handling and precise control.
Tool Bit TA3
Technical data
| A | B | C | |
| Application | Steel Stainless Steel | Steel Stainless Steel | Aluminium/Copper |
| max. Dimension | 3 mm | 3mm | 3 mm |
| Bit edge angle | 75° | 75° | 60° |
| Bit edge length | 6 mm | 13 mm | 13 mm |
| Bit thickness | 4 mm | 4 mm | 4 mm |
Drive unit TA3
| Type | Weight | Length | Cylinder |
| kg | mm | Ø mm | |
| TA3-D233/... | 0.9 | 220 | 52 |
All information subject to change without further notice.
No responsibility is taken for the correctness of the named specifications.
Downloads
Instruction manual and Spare Part List TA3-D233
Product data sheet
