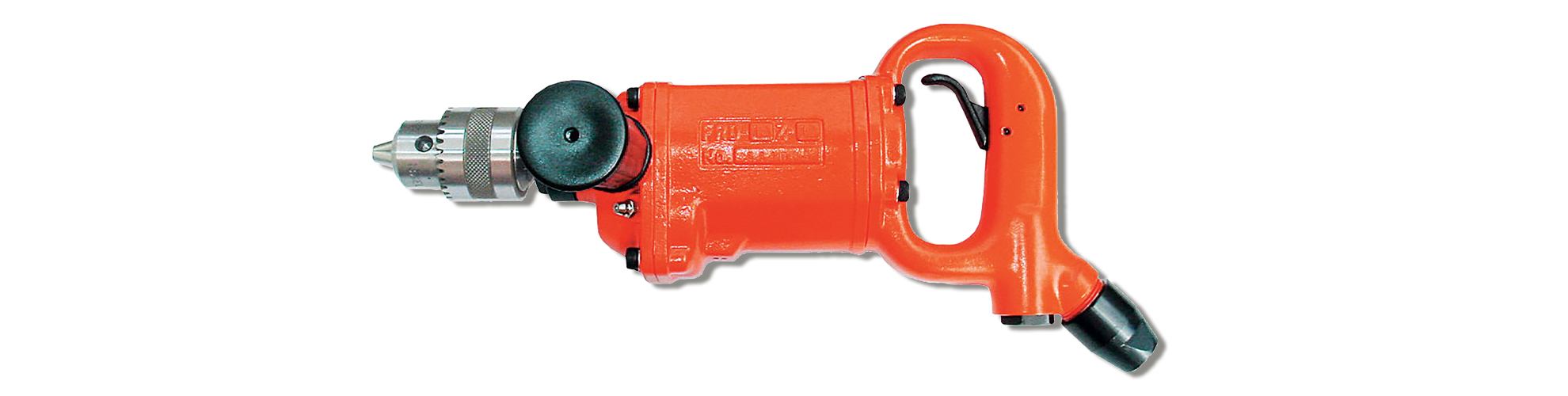

Drilling Machine Series FRD medium sized with spade handle
Technical Data
Drilling Machine Serie FRD medium-sized with spade handle
The drills are light but sturdy. Their practical design is the result of the most recent drill technology.
They offer a complete line of drills with a drilling capacity to 16 mm.
Medium sized drilling machine with spade handle
| Type | Drilling | Torque | Idle speed | Type a. size | Chuck | Spindle center | Capacity | Total | Weight | Max. air |
| lever inside | capacity | of spindle | distance | length | consumption | |||||
| mm | Nm | min-¹ | Thread | mm | mm | kW | mm | kgs | m³/min. | |
| FRD-12Z-1C | 13 | 22.0 | 1200 | ½" - 20 | 13 | 34 | 0.66 | 344 | 3.3 | 1.20 |
| FRD-16Z-1C | 16 | 34.3 | 800 | ⅝" - 16 | 16 | 34 | -- | 364 | 3.7 | 1.20 |
Medium sized drilling machine with spade handle
| Model lever | Spindle center dist. | Capacity | Total length | Weight | Max. air consumption |
| inside | mm | kW | mm | kgs | m³/min. |
| FRD-12Z-1C | 34 | 0,66 | 344 | 3,3 | 1,20 |
| FRD-16Z-1C | 34 | -- | 364 | 3,7 | 1,20 |
Compressed air connection ⅜“ BSP, Hose size ½“ (12.7 mm)
Delivered with keyed chuck and chuck key.
All information subject to change without further notice.
No responsibility is taken for the correctness of the named specifications.
