Air-Operated Drilling Units
Air Hydraulic Precision Drilling Unit BE(F)P 22
The basic design of the BE(F)P22 consists of a vane motor powered by compressed air, a pneumatic cylinder, and a closed hydraulic system. The BE(F)P 22 has a precision chuck for an extra high level of precision. Thanks to precision, seperate and double ball bearing run-out amounts to a maximum of 0.01 mm. The total stroke length can be variably subdivided into rapid advance and working feed across the whole range. The throttle/check valve in the hydraulic system permits exact setting of the feed rate and high speed return.
Features
• Precision design with a max. run-out at spindle nose of 0.01 mm
• Extremely compact design
• Built-in hydraulics for controlled working feed
• Adjustment of drilling depth with positive stop guarantees a high degree of accuracy
• Low noise level
• Minimal air consumption
Guidlines for choice of unit
| Drilling unit | Ø in Steel/mm | Ø in Aluminium & Brass/mm | Ø in Wood/Plastics/mm |
| BE(F)P2222 | 5 | 9 | 12 |
| BE(F)P2236 | 4 | 7 | 10 |
| BE(F)P2249 | 3 | 6 | 8 |
| BE(F)P22150 | 2 | 3 | 4 |
| BEP22220 | 2 | 3 | 4 |
Technical data at 6.3 bar
| Thrust (max.) | 600 N | Min. CC spindle spacing | 45 mm | Air consumption | < 0.3 m³/min. |
| Power | 0.25 kW | Run-out at spindle nose (max.) | 0.01 mm | Sound level | 70 dB(A) |
| Stroke (max.) | Depth accuracy ± | 0.01 mm | |||
| BEP 100% controlled | 30 mm | RApid advance rate | 10m/min. | ||
| BEFP total | 60 mm | Controlled feed rate | > 0.01 m/min. | ||
| of which is controlled | 45 mm | Working pressure range | 6 - 7 bar |
Technical data
| Drilling unit | Idle speed rpm | Idle speed (at max. output) | (at max. output) |
| rpm | rpm | Nm | |
| BEP2222 | 2200 | 1100 | 2.4 |
| BEFP2222 | 2200 | 1100 | 2.4 |
| BEP2236 | 3600 | 1800 | 1.5 |
| BEFP | 3600 | 1800 | 1.5 |
| BEP2249 | 4900 | 2450 | 1.1 |
| BEFP2249 | 4900 | 2450 | 1.1 |
| BEP22150 | 15000 | 7500 | 0.25 |
| BEFP22150 | 15000 | 7500 | 0.25 |
| BEP22220 | 22000 | 11000 | 0.25 |

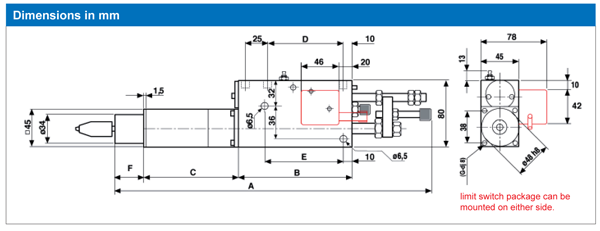

Dimensions in mm
Dimensions
| Drilling unit | A | B | C | D | E | F | Weight |
| mm | mm | mm | mm | mm | mm | kg | |
| BEP2222 | 380 | 140 | 116 | 94.5 | 107 | 32 | 4.7 |
| BEFP2222 | 485 | 200 | 146 | 154.5 | 167 | 2 | 6.7 |
| BEP2236 | 380 | 140 | 116 | 94.5 | 107 | 32 | 4.7 |
| BEFP2236 | 485 | 200 | 146 | 154.5 | 167 | 2 | 6.7 |
| BEP2249 | 380 | 140 | 116 | 94.5 | 107 | 32 | 4.7 |
| BEFP2249 | 485 | 200 | 146 | 154.5 | 167 | 2 | 6.7 |
| BEP22150 | 380 | 140 | 116 | 94.5 | 107 | 32 | 4.7 |
| BEFP22150 | 485 | 200 | 146 | 154.5 | 167 | 2 | 6.7 |
| BEP22220 | 380 | 140 | 116 | 94.5 | 107 | 32 | 4.7 |

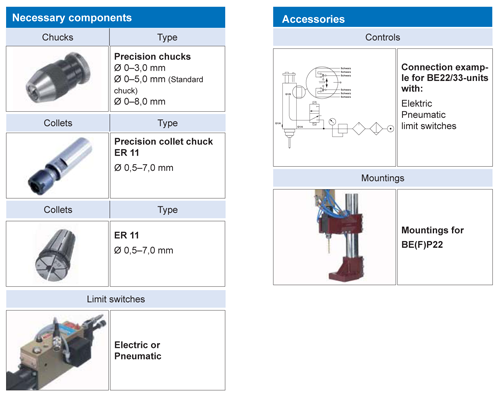

Necessary components and accessories
All information subject to change without further notice.
No responsibility is taken for the correctness of the named specifications.
