Hydraulic pumps
Air Hydraulic Pump Series PP 1000
The single-stage hydraulic pumps PP ...- 1000 are extremely compact and operate in any horizontal or vertical
position thanks to a rubber bilge installed in the tank. The pumps can be operated by hand or foot.
• High oil flow
• easy filling and checking of the oil level
• Pressure relief valve to prevent overfilling of the tank
• Easy connection of the reflux oil line to the oil filler opening
• reliable and service-friendly
Pressure ranges: 700, 800 and 1000, 1500 and 2275 bar.
For hoses, couplings and gauges please refer to „accessories“.
Technical Data Series PP 1000
| Type | Max. work press. | eff. Oil vol. | Capacity | Air press. | Length | Width | Height | Weight |
| MPa | cm³ | cm³/min. | MPa | mm | mm | mm | kgs | |
| PP70B-1000 | 70 | 1000 | 750-170 | 6 - 10 | 439 | 140 | 174 | 5.9 |
| PP80B-1000 | 80 | 1000 | 600-160 | 6 - 10 | 439 | 140 | 174 | 5.9 |
| PP100B-1000 | 100 | 1000 | 600-120 | 6 - 10 | 439 | 140 | 174 | 5.9 |
| PP150-1000 | 150 | 1000 | 370-65 | 6 - 10 | 440 | 140 | 174 | 5.9 |
| PP227-1000 | 227 | 1000 | 270-31 | 6 - 10 | 440 | 140 | 174 | 6.2 |

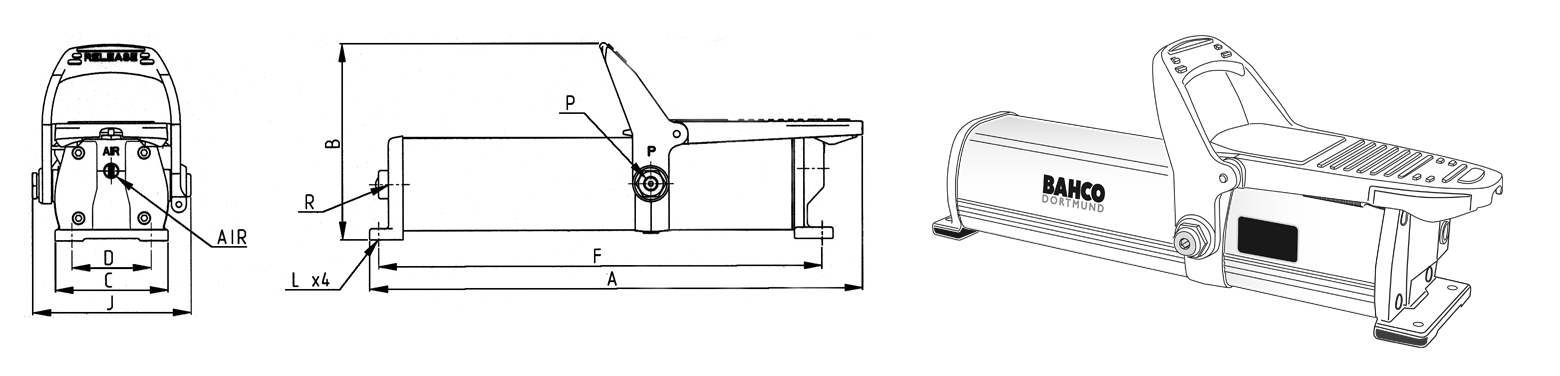

Technical Drawing Series PP 1000
Technical Data Series PP 1000
| Type | Max. work press. | A | B | C | D | F | J | L | P | R | Air conn. |
| MPa | mm | mm | mm | mm | mm | mm | Ø mm | Hydr. press. conn. | Reflux conn. | ||
| PP70B-1000 | 70 | 439 | 174 | 100 | 70 | 395 | 140 | 7 | G ¼" | G ⅜" | G ¼" |
| PP80B-1000 | 80 | 439 | 174 | 100 | 70 | 395 | 140 | 7 | G ¼" | G ⅜" | G ¼" |
| PP100B-1000 | 100 | 439 | 174 | 100 | 70 | 395 | 140 | 7 | G ¼" | G ⅜" | G ¼" |
| PP150-1000 | 150 | 440 | 174 | 100 | 70 | 395 | 140 | 7 | G ¼" | G ⅜" | G ¼" |
| PP227-1000 | 227 | 440 | 174 | 100 | 70 | 395 | 140 | 7 | G ¼"-120° cone | G ⅜" | G ¼" |
All information subject to change without further notice.
No responsibility is taken for the correctness of the named specifications.
Product data sheet
Spare Part List for air hydraulic pump PP1000
