Hydraulic Pumps
Motor Pump Series PME 35RH
This two-stage portable pumps are compact of design with an extremely high performance. They are designed for the operation of single-acting cylinders and cutting tools.
Features
• 3/3-way-solenoid/valve with pressuriser function for hydraulic cylinders
• 2/2-way valve without pressuriser function for cutting Tools
• Remote control with a 2.30 m cable, control voltage 12V
• Automatic switchover: Low pressure (LP) / high pressure (HP)
• Carrying strap
ATTENTION!
Pumps are not suitable for continuous operation!
Technical Data PME35RH
| Technical data | PME 35RH-IN-1 | PME 35RH-IN-2 | PME 35RH-NO-1 | PME 35RH-NO-2 |
| Working pressure: up to 800 bar | • | • | • | |
| Flow: Low pressure 2.0 l/min | • | • | • | |
| High pressure 0.2 l/min | • | • | • | |
| Valve | 3/3-Way | 3/3-Way | 2/2-Way | 2/2-Way |
| Oil volume, available | 0.8 l | 1.6 l | 0.8 l | 1.6 l |
| Electric motor: 230V; 50Hz; 0.35kW | • | • | • | • |
| Weight with oil | 7.8 | 9.5 kgs | 7.5 kgs | 9.5 kgs |

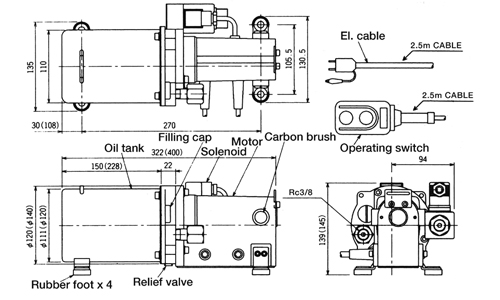

Technical drawing PME 35RH-IN

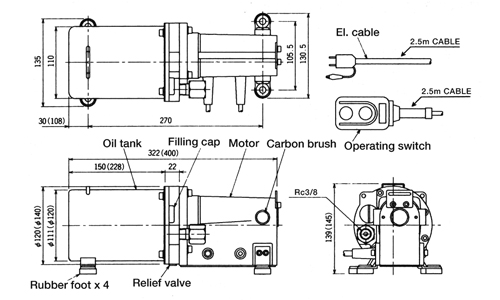

Technical drawing PME 35RH-NO
All information subject to change without further notice.
No responsibility is taken for the correctness of the named specifications.
Product data sheet
Spare Part List for electro motor pump PME-35RH-NO
Spare Part List for electro motor pump PME-35RH-IN
