Hydraulic pumps

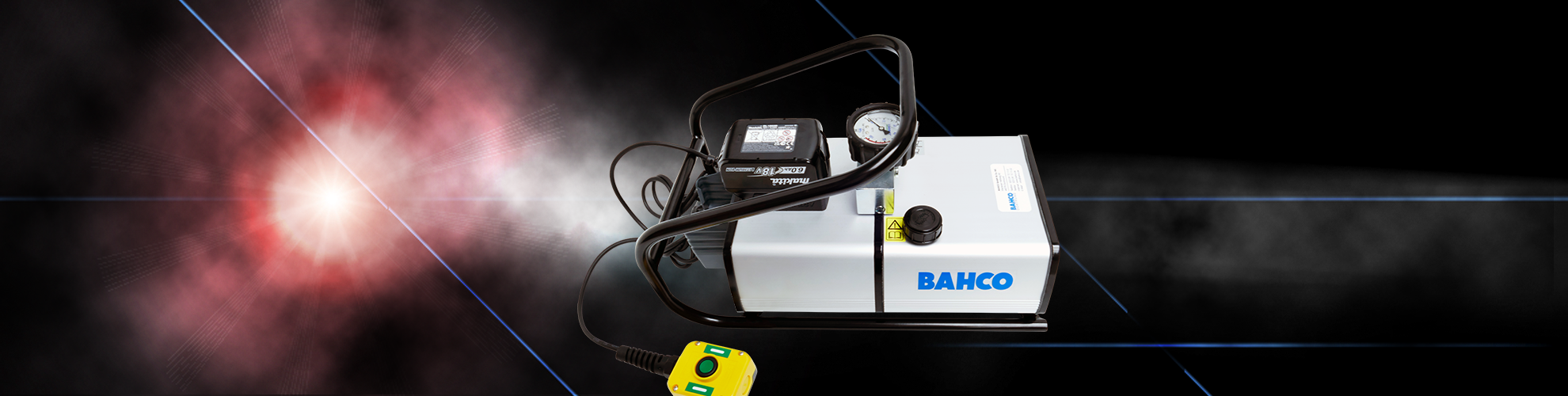

Battery-Powered Hydraulic Pump PEP70-2500 MRV
Features
• 70 MPa / 700 bar
• For Makita 18V LXT® battery*
• Usable oil volume: 2.5 L
• Adjustable pressure: 0–70 MPa
• Oil flow without load: 3.9 L/min
• Oil flow at 70 MPa: 0.28 L/min
• Ø63 mm pressure gauge, Class 2.5 included
• 540 W at rated pressure
• Durable BLDC motor
• Weight under 13 kg
• Aluminum oil tank
• Remote control, 3 m
• Startable at maximum pressure
Information
Compact, battery-powered pump developed for the Makita 18V LXT® battery series (also compatible with 18V batteries from other manufacturers via adapter)*.
Powered by a high-performance BLDC motor, it is especially robust for long service life and protected by a durable aluminum housing. Remote control with hold function included.
Functionality
A low oil flow rate of 3.9–3.4 L/min at 0–5 MPa and a high-pressure oil flow rate of 0.34–0.28 L/min at 6–70 MPa enable fast and effortless completion of any task. Adjustable pressure for added control.
User-Friendliness
Designed for intermittent use. Suitable for industrial applications, workshop operations, and on-site use.
For example, for:
• Bushing installation tools
• Spreaders
• Hydraulic presses
• Hydraulic cylinders
* To select the appropriate adapter, we require the specifications of the 18V battery model you are using.
Technical Data
| Type | Max. Pressure | High Pressure | Low Pressure | at maximum pressure | P | Effective Oil Volume | Weight |
| MPa / bar / psi | l/min | l/min | cm3/min | cm3 | kg | ||
| PEP-2500 | 70 / 700 / 10000 | 0.28 | 3.96 | 280 | G1/4" | 2500 | 12.5 |

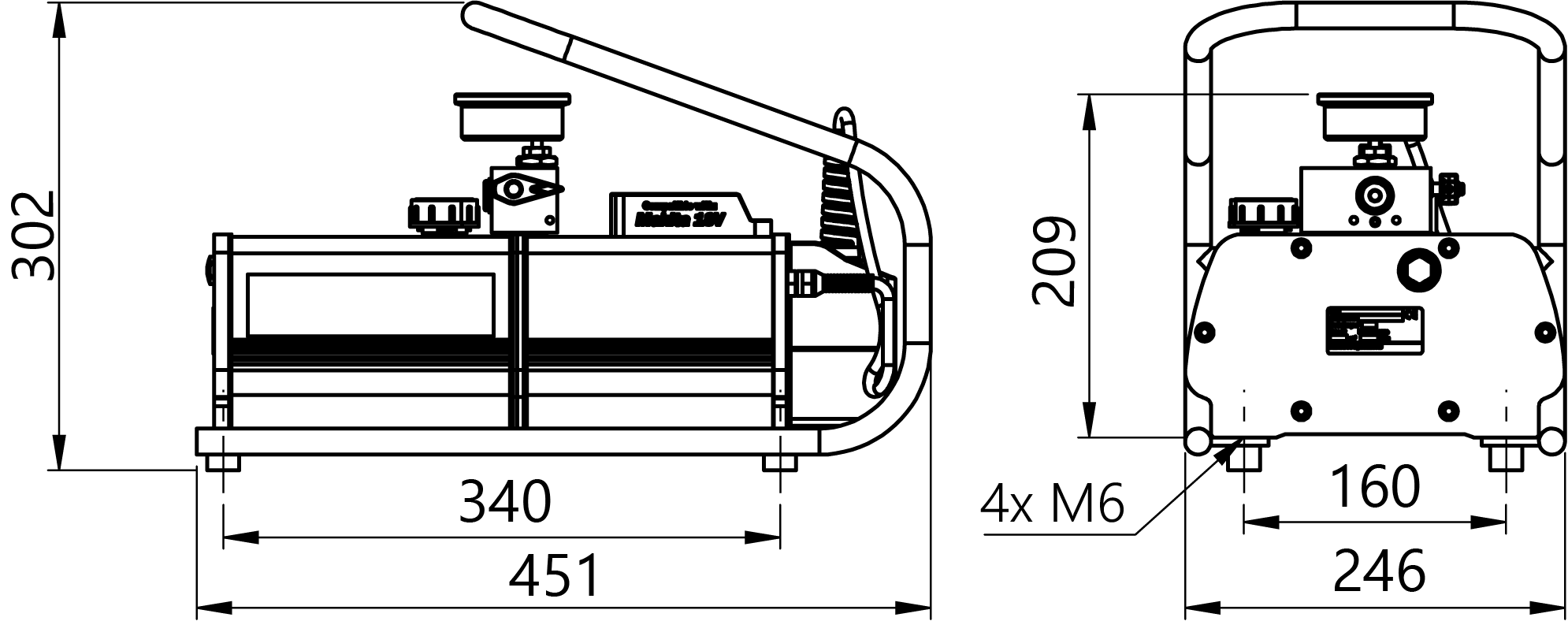

Technical Drawing
All information subject to change without further notice.
No responsibility is taken for the correctness of the named specifications.
