Hydraulic Wrenches
Hydraulic Torque Wrench- ..LOW-F - with Fine Toothing-
The hydraulic torque wrench series LOW-F is compact, flat and slim. The design makes it perfect for height-restricted applications. The fine toothing of the tool prevents jamming.
Features
• Torque setting using a torque table
• Torque range 225-101600Nm
• Repeatability ± 3.0%
• Operating pressure up to 700bar
• Extremely flat design and the same width of drive and cassette
• Robust ratchet wheel with large teeth
• Torsion retention pawl system for max. efficiency
• Integrated safety valve to protect against overpressure
• Support arm with safety device for all positions
• 360° x 180° connection joint with quick coupling
• Suitable for continuous use at max. pressure
Dimensions and selection table
| Type | Wrench size * | Torque min. | Torque max. | Weight | A | BR* | C | D1 | D2 | E |
| [mm] | [Nm] | [Nm] | [kgs] | mm | mm | mm | mm | mm | mm | |
| 2 LOW-F | 19 - 60 | 260 | 3000 | 3.0 | 32 | 27 - 46 | 51 | 97 | 125 | 193 |
| 4 LOW-F | 27 - 80 | 540 | 6000 | 6.7 | 41 | 36 - 61 | 64 | 125 | 158 | 250 |
| 8 LOW-F | 50 - 105 | 1180 | 14500 | 11.8 | 52 | 46 - 78 | 78 | 157 | 189 | 310 |
| 14 LOW-F | 70 - 115 | 2120 | 23100 | 18.4 | 64 | 60 - 87 | 93 | 191 | 223 | 378 |
| 30 LOW-F | 80 - 175 | 4380 | 48500 | 45.0 | 83 | 78-128 | 97 | 242 | 291 | 405 |
* See selection table for interchangeable cassettes.

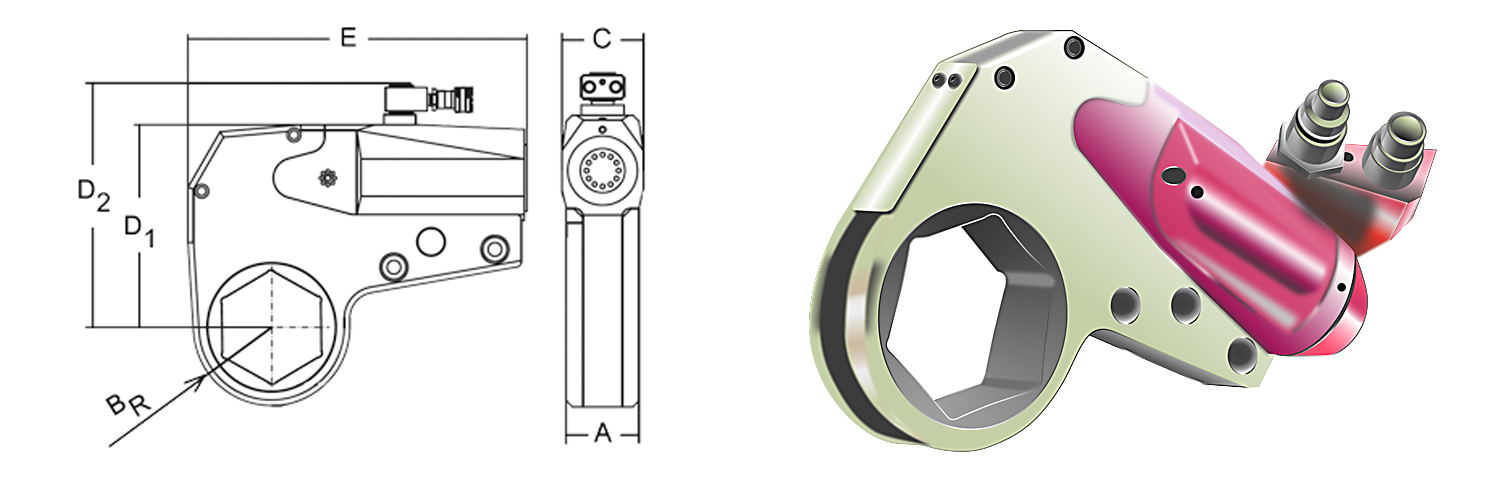

Technical Drawing
OPTIONS
• Higher torques on request
• Personalized engraving on the housing (e.g. company logo)
ACCESSORIES
SCOPE OF DELIVERY
• LOW-F hydraulic cassette screwdriver
• Interchangeable support
• Torque table
• Factory test certificate
• Operation manual
• Tool case (up to type 14 LOW-F)
All information subject to change without further notice.
No responsibility is taken for the correctness of the named specifications.
