Hydraulic Spreaders
Hydraulic Spreaders: Versatile Solutions for Lifting and Separating
Powerful Spreading for Industry, Rescue, and Demolition
Our single-acting hydraulic spreaders are engineered for the toughest conditions. Featuring an integrated pressure cylinder and a movable jaw with a robust return spring, they ensure maximum reliability whenever components need to be lifted or pried apart.
Flexibility through Different Power Concepts
- HS Models: These units are directly coupled to a hand pump, making them self-contained and ready for use in any position.
- ESH 10 and CS Models: Designed for connection to an external hydraulic pump via a pressure hose – perfect for stationary tasks or integration into existing hydraulic systems.
Applications
From scrap and demolition work to emergency rescue services and industrial maintenance – these spreaders deliver the power needed for critical operations.
Key Features
- Versatile Range: 5 models with spreading widths from 80 to 120 mm.
- Efficient Spring Return: Integrated in all models (ESH, CS, HS).
- Durability: Corrosion-resistant finish for harsh environments.
- Ergonomics: Excellent weight-to-capacity ratio.
- Maximum Grip: Specially profiled spreading surfaces for secure positioning.
Technical data Type HS
| Type | Order number | Capacity (Top/at P/return) | Spread width | cyl. capacity | max. Pump power | Numbers of pump stroke | Spread class | Weight |
| kN | mm | cm³ | N | tn | kg | |||
| HS 20-120 | 37284 | 20 / 44 /spring | 120 | 30 | 300 | 25 | 2 | 8,8 |
| HS 50-120 | 38911900 | 50 / 110 / spring | 120 | 66 | 300 | 55 | 5 | 18,0 |
Dimensions
| Type | A | B | C | D | E | F | G | H | Remarks |
| mm | mm | mm | mm | mm | mm | mm | mm | ||
| HS 20-120 | 98 | 120 | 9 | 90 | 240 | 120 | 66 | 700 | with attached hand pump P15-8, max. 800 bar |
| HS 50-120 | 150 | 132 | 12 | 102 | 305 | 120 | 110 | 730 | with attached hand pump P15-8, max. 800 bar |

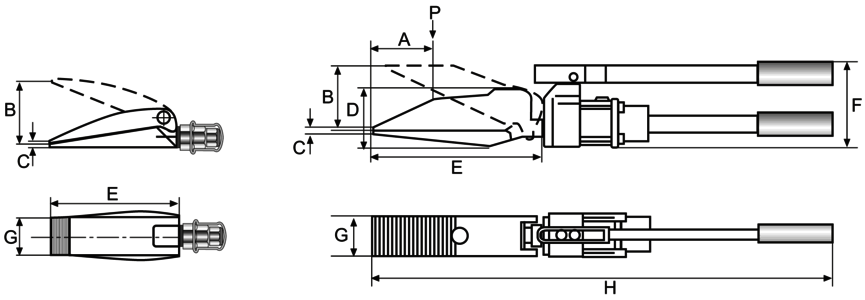

Technical drawing
Technical data Type ESH 10
| Type | Order number | Capacity (Top/at P/return) | Spread width | cyl. capacity | Spread class | Weight |
| kN | mm | cm³ | tn | kg | ||
| ESH 10 | 38014507 | 9 / - / Feder | 85 | 11 | 1 | 1.8 |
Dimensions
| Type | A | B | C | D | E | G | Remarks |
| mm | mm | mm | mm | mm | mm | ||
| ESH 10 | -- | 85 | 8 | 53 | 168 | 46 | only spreader, max. 700 bar |
Technical drawing
Technical data Type CH
| Type | Order number | Capacity (Top/at P/return) | Spread width | cyl. capacity | Spread class | Weight |
| kN | mm | cm³ | tn | kg | ||
| CS 20-120 | 38361800 | 20 / 44 / spring | 120 | 30 | 2 | 5.4 |
| CS 50-120 | 38361900 | 50 / 110 / spring | 120 | 66 | 5 | 15.0 |
Dimensions
| Type | A | B | C | D | E | G | Remarks |
| mm | mm | mm | mm | mm | mm | ||
| CS 20-120 | 98 | 120 | 9 | 90 | 240 | 66 | only spreader, max. 800bar |
| CS 50-120 | 150 | 132 | 12 | 102 | 305 | 110 | only spreader, max. 800bar |
Technical drawing
Spreader with Connecting hose
Pump types for connection to the spreader
For type ESH please order the pump with max. 700 bar operating pressure!
All information subject to change without further notice.
No responsibility is taken for the correctness of the named specifications.
Product data sheet
Spare Part List CS-HS-20-120
Spare Part List CS-50-120
Spare Part List HS50-120
