CT - Telescopic Cylinder for low heights • 800 bar

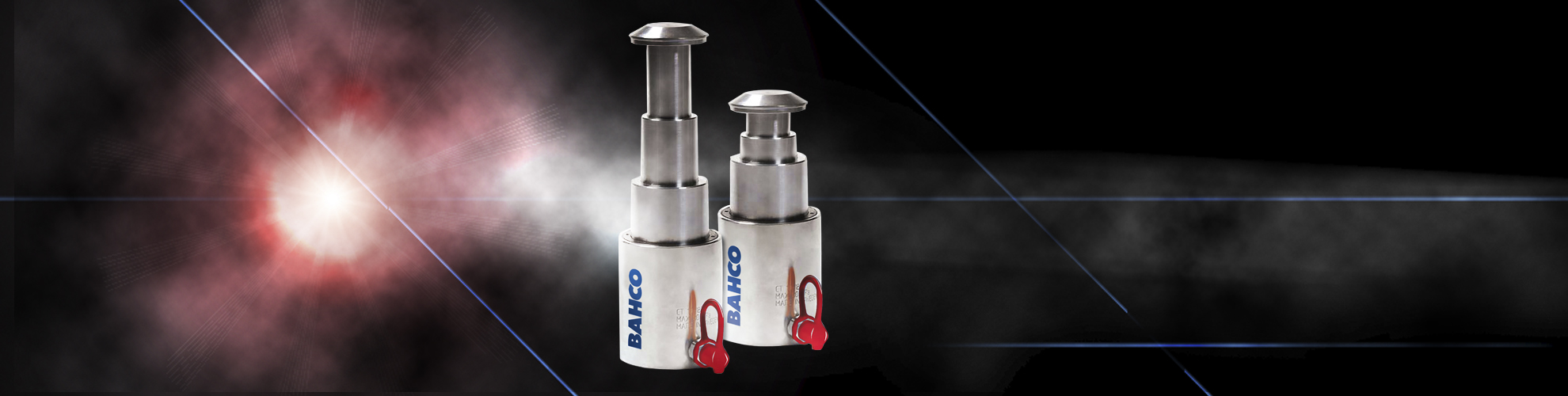

Telescopic cylinders are used everywhere, where only a limited working height is available, but the load to be lifted very high. Time consuming backups and substruc-tures of the load in the gradual working with flat cylinders is eliminated. The telescopic cylinder has a low profile and can reach a huge hub.The principle, three different piston in a cylinder.
This saves time and effort.
Features CT-Telescopic cylinder:
- Capacity: 35-19-11 tons
- Stroke: 54 - 187 mm
- Working pressure 800 bar
- Special designs on request!
Technical data CT - Telescopic cylinder
| Type | Part-No. | Capacity | Stroke | Displace- | Piston area | Oil vol. | Length A | Diameter B | C | D | E | Weight |
| at 800 bar kN | mm | ment cm³ | cm² | cm³ | mm | mm | mm | mm | mm | kgs | ||
| CT10-187 | 40501580 | -- | 187 | -- | -- | 486 | 135 | 100 | 16 | 322 | 75 | 6.7 |
| Piston 1 | -- | 350 | 54 | 239 | 44.2 | -- | -- | -- | -- | -- | -- | -- |
| Piston 2 | -- | 190 | 63 | 150 | 23.7 | -- | -- | -- | -- | -- | -- | -- |
| Piston 3 | -- | 110 | 70 | 97 | 13.8 | -- | -- | -- | -- | -- | -- | -- |
Technical data CT compakt cylinder
| Model | Length A | Diameter B | C | D | E | Weight |
| mm | mm | mm | mm | mm | kgs | |
| CT10-187 | 135 | 100 | 16 | 322 | 75 | 6,7 |
| Piston 1 | -- | -- | -- | -- | -- | -- |
| Piston 2 | -- | -- | -- | -- | -- | -- |
| Piston 3 | -- | -- | -- | -- | -- | -- |
Connection thread G¼“
CONNECTION NIPPLE TX23 NOT INCLUDED. PLEASE ORDER SEPARATELY!

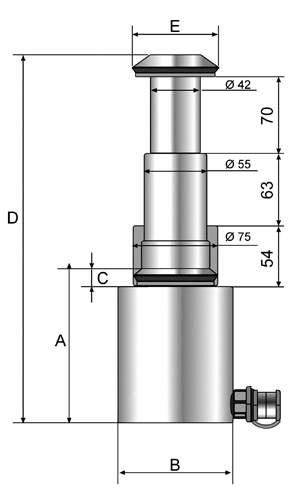

Technical drawing CT-Cylinder
All information subject to change without further notice.
No responsibility is taken for the correctness of the named specifications.
Instruction sheet
Produkt data sheet
Spare Part List CT10-187
