Compressed Air Accessories
Safety Couplings and Nipples sSafe320
• A safety coupling that vents before disconnection
• Extremely high flow capacity
• Easy handling and extreme durability

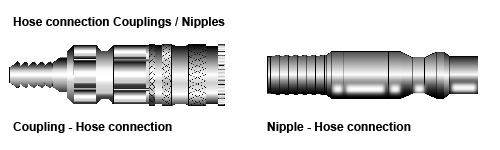

Couplings
Technical data
| Coupling | Part No. | Connection | Nippel | Part No. | Connection |
| 10 320 2002 | 6.3 mm (¼") | 10 320 5001 | 5.0 mm (3/16") | ||
| 10 320 2003 | 8.0 mm (5/16") | 10 320 5002 | 6.3 mm (¼") | ||
| 10 320 2009 | 9.0 mm | 10 320 5003 | 8.0 mm (5/16") | ||
| 10 320 2004 | 10.0 mm (⅜") | 10 320 5004 | 10.0 mm (⅜") | ||
| 10 320 2005 | 13.0 mm (½") | 10 320 5005 | 13.0 mm (½") |

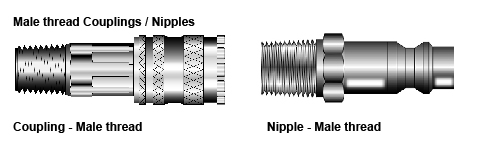

Male thread couplings / nipples
Technical data
| Coupling | Part No. | Connection | Nipple | Part No. | Connection |
| • | 10 320 2152 | R¼" | 10 320 5151 | R⅛" | |
| • | 10 320 2154 | R⅜" | 10 320 5152 | R¼" | |
| • | 10 320 2155 | R½" | 10 320 5154 | R⅜" | |
| • | 10 320 2452 | NPT¼" | 10 320 5451 | NPT⅛" | |
| • | 10 320 2454 | NPT⅜" | 10 320 5452 | NPT¼" | |
| • | 10 320 2455 | NPT½" | 10 320 5454 | NPT⅜" | |
| 10 320 5455 | NPT½" |

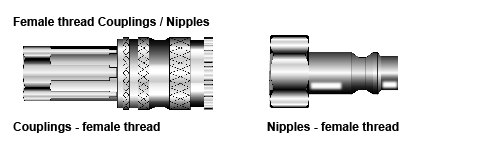

Female thread couplings / nipples
Technical data
| Coupling | Part No. | Connection | Nipple | Part No. | Connection |
| • | 10 320 2202 | G¼" | 10 320 5201 | G⅛" | |
| • | 10 320 2204 | G⅜" | 10 320 5202 | G¼" | |
| • | 10 320 2205 | G½" | 10 320 5204 | G⅜" | |
| • | 10 320 2402 | NPT¼" | 10 320 5205 | G½" | |
| • | 10 320 2404 | NPT⅜" | 10 320 5401 | NPT⅛" | |
| • | 10 320 2405 | NPT½" | 10 320 5402 | NPT¼" | |
| 10 320 5404 | NPT⅜" | ||||
| 10 320 5405 | NPT½" |

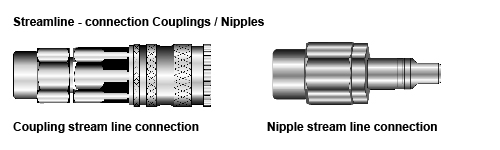

Streamline-Line-connection couplings / nipples
Technical data
| Kupplung | Part No. | Connection | Nippel | Part No. | Connection |
| • | 10 320 2058 | 5.0 x 8.0 mm | 10 320 5058 | 5.0 x 8.0 mm | |
| • | 10 320 2060 | 6.5 x 10.0 mm | 10 320 5060 | 6.5 x 10.0 mm | |
| • | 10 320 2062 | 8.0 x 12.0 mm | 10 320 5062 | 8.0 x 12.0 mm | |
| • | 10 320 2063 | 9.5 x 13.5 mm | 10 320 5063 | 9.5 x 13.5 mm | |
| • | 10 320 2066 | 11.0 x 16.0 mm | 10 320 5066 | 11.0 x 16.0 mm |
The coupling is an easy to use high performance shaft coupling with a long service life. It is a one-hand operated use safety coupling that vents before disconnection eliminating the risk of hose whip. Male threads on the couplings and nipples are factory-fitted with a thread sealing. The couplings have a smaller outside dimension than comparable designs. The fully automatic coupling ensures quick and easy handling.
Technical data
| Nominal width: | 7.6 mm |
| Flow capacity: | 2250 l/min. |
| Max. working pressure: | 16 bar |
| Min. bursting pressure: | 140 bar |
| Temperature range: | -20°C up to +100°C |
| Coupling material: | Steel/brass, galvanized |
| Nipple material: | Steel, hardened, galvanized |
| Coupling force: | 86 N |
| Outer diameter: | 23.5 mm |
All information subject to change without further notice.
No responsibility is taken for the correctness of the named specifications.
Product data sheet
