Compressed Air Accessories
Brass fittings
Technical data
Range of Brass Fittings
Brass Fittings
Technical data
| Reducing nipple, short version | Type | Part-No. | Thread |
| • | RN 14 - 18 | 251.01 | G ¼"A - ⅛"I |
| • | RN 38 - 18 | 251.06 | G ⅜"A - ⅛"I |
| • | RN 38 - 14 | 251.02 | G ⅜"A - ¼"I |
| • | RN 12 - 18 | 251.08 | G ½"A - ⅛"I |
| • | RN 12 - 14 | 251.07 | G ½"A - ¼"I |
| • | RN 12 - 38 | 251.03 | G ½"A - ⅜"I |
| • | RN 34 - 38 | 251.09 | G ¾"A - ⅜"I |
| • | RN 34 - 12 | 251.04 | G ¾"A - ½"I |
| • | RN 10 - 12 | 251.10 | G 1" A - ½"I |
| • | RN 10 - 34 | 251.05 | G 1" A - ¾"I |

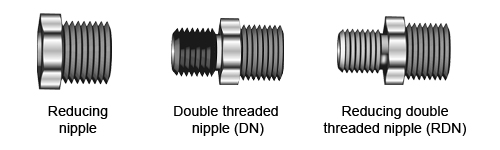

| Double threaded nipple (DN) | |||
| Reducing double nipple(RDN) | |||
| • | DN 18 - 18 | 252.A | G ⅛"A - ⅛"A |
| • | RDN 18 - 14 | 252.B | G ⅛"A - ¼"A |
| • | RDN 18 - 38 | 252.B/1 | G ⅛"A - ⅜"A |
| • | DN 14 - 14 | 251.01 | G ¼"A - ¼"A |
| • | RDN 14 - 38 | 252.02 | G ¼"A - ⅜"A |
| • | RDN 14 - 12 | 252.02/S | G ¼"A - ½"A |
| • | DN 38 - 38 | 252.03 | G ⅜"A - ⅜"A |
| • | RDN 38 - 12 | 252.04 | G ⅜"A - ½"A |
| • | RDN 34 - 38 | 252.04/S | G ⅜"A - ¾"A |
| • | DN 12 - 12 | 252.05 | G ½"A - ½"A |
| • | RDN 34 - 12 | 252.06 | G ½"A - ¾"A |
| • | RDN 12 - 10 | 252.06/S | G ½"A - 1" A |
| • | DN 34 - 34 | 252.07 | G ¾"A - ¾"A |
| • | RDN 34 - 10 | 252.07/1 | G ¾"A - 1" A |
| • | DN 10 - 10 | 252.0772 | G 1" A - 1" A |
Working pressure: max. 25 bar
Brass Fittings
Technical data

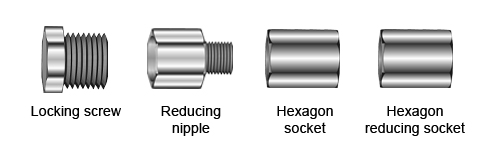

| Locking screws | Type | Part-No. | Thread |
| • | VS 18 | 252.95 | G ⅛" |
| • | VS 14 | 252.96 | G ¼" |
| • | VS 38 | 252.97 | G ⅜" |
| • | VS 12 | 252.98 | G ½" |
| Reducing nipple, long version | Type | Part-No. | Thread |
| • | RS 18 - 18 | 252.11 | G ⅛"A - ⅛"I |
| • | RS 18 - 14 | 252.08 | G ⅛"A - ¼"I |
| • | RS 14 - 18 | 252.12 | G ¼"A - ⅛"I |
| • | RS 14 - 14 | 252.13 | G ¼"A - ¼"I |
| • | RS 14 - 38 | 252.09 | G ¼"A - ⅜"I |
| • | RS 38 - 14 | 252.14 | G ⅜"A - ¼"I |
| • | RS 38 - 38 | 252.15 | G ⅜"A - ⅜"I |
| • | RS 38 - 12 | 252.10 | G ⅜"A - ½"I |
| • | RS 12 - 38 | 252.16 | G ½"A - ⅜"I |
| • | RS 12 - 12 | 252.17 | G ½"A - ½"I |
| • | RS 12 - 34 | 252.18 | G ½"A - ¾"I |
| Hexagon socket | Type | Part-No. | Thread |
| • | MS 18 | 252.21 | G ⅛" |
| • | MS 14 | 252.22 | G ¼" |
| • | MS 38 | 252.23 | G ⅜" |
| • | MS 12 | 252.24 | G ½" |
| • | MS 34 | 252.24/1 | G ¾" |
| • | MS 10 | 252.24/2 | G 1" |
| Hex. reducing socket | Type | Part-No. | Thread |
| • | MSR 18 - 14 | 252.25 | G ⅛" - ¼" |
| • | MSR 14 - 38 | 252.26 | G ¼" - ⅜" |
| • | MSR 38 - 12 | 252.27 | G ⅜" - ½" |
Other sizes on request!
Working pressure: max. 25 bar
Brass Fittings
Technical data

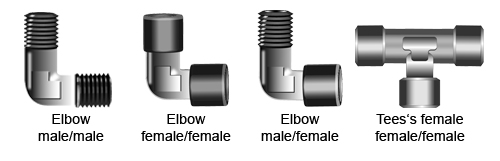

| Elbows, male/male | Type | Part-No. | Thread |
| • | WA 18 | 253.00 | R ⅛" |
| • | WA 14 | 253.01 | R ¼" |
| • | WA 38 | 253.02 | R ⅜" |
| • | WA 12 | 253.03 | R ½" |
| Elbows, female/female | Type | Part-No. | Thread |
| • | WI 18 | 253.11 | G ⅛" |
| • | WI 14 | 253.12 | G ¼" |
| • | WI 38 | 253.13 | G ⅜" |
| • | WI 12 | 253.14 | G ½" |
| • | WI 34 | 253.32 | G ¾" |
| • | WI 10 | 253.33 | G 1" |
| Elbows, male/female | Type | Part-No. | Thread |
| • | WIA 18 | 253.15 | R/G ⅛" |
| • | WIA 14 | 253.16 | R/G ¼" |
| • | WIA 38 | 253.17 | R/G ⅜" |
| • | WIA 12 | 253.18 | R/G ½" |
| Tee's, female/female/female | Type | Part-No. | Thread |
| • | TI 18 | 254.33 | G ⅛" |
| • | TI 14 | 254.34 | G ¼" |
| • | TI 38 | 254.35 | G ⅜" |
| • | TI 12 | 254.39 | G ½" |
| • | TI 34 | 254.48 | G ¾" |
| • | TI 10 | 254.49 | G 1" |
Other sizes on request!
Working pressure: max. 25 bar
Brass Fittings & Seals
Technical data

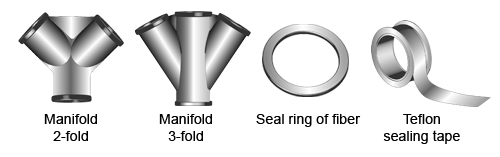

| Manifolds, 2-fold | Type | Part-No. | Thread | |
| • | VI 14/3 | 255.00/1 | 1 x R¼" male / 2 x G¼" female | |
| • | VI 38/3 | 255.01 | 3 x ⅜" female | |
| • | VI 12/3 | 255.02 | 3 x ½" female | |
| Manifolds, 3-fold | Type | Part-No. | Thread | |
| • | VI 38/4 | 256.01 | 3 x G⅜" female | |
| • | VI 12/4 | 256.02 | 3 x G½" female | |
| Sealing rings made of Fiber | Type | Part-No. | Thread | |
| • | DV 18 | 258.01 | G⅛" | |
| • | DV 14 | 258.02 | G¼" | |
| • | DV 38 | 258.04 | G⅜" | |
| • | DV 12 | 258.04 | G½" | |
| Working pressure: max. 25 bar | ||||
| Teflon sealing tape | Type | Part-No. | Length | Width |
| m | mm | |||
| TB 0 | 258.66 | 12 | 12 |
